Concave mirror ​

python
import torch
import torch.optim as optim
import torchlensmaker as tlm

surface = tlm.Parabola(diameter=35.0, A=tlm.parameter(-0.002))

optics = tlm.Sequential(
    tlm.PointSourceAtInfinity(beam_diameter=25),
    tlm.Gap(100),
    tlm.ReflectiveSurface(surface),
    tlm.Gap(-50),
    tlm.FocalPoint(),
)

tlm.show(optics, dim=2)
tlm.show(optics, dim=3)
python
optics.set_sampling2d(pupil=10)
tlm.optimize(
    optics,
    optimizer = optim.Adam(optics.parameters(), lr=1e-4),
    dim = 2,
    num_iter = 100
).plot()
[  1/100] L= 4.16038 | grad norm= 1394.116943359375
[  6/100] L= 3.46405 | grad norm= 1393.4493408203125
[ 11/100] L= 2.76842 | grad norm= 1391.9974365234375
[ 16/100] L= 2.07398 | grad norm= 1389.77001953125
[ 21/100] L= 1.38124 | grad norm= 1386.775634765625
[ 26/100] L= 0.69077 | grad norm= 1383.0262451171875
[ 31/100] L= 0.00312 | grad norm= 1378.5377197265625
[ 36/100] L= 0.42770 | grad norm= 1375.3431396484375
[ 41/100] L= 0.39443 | grad norm= 1375.600341796875
[ 46/100] L= 0.09227 | grad norm= 1377.85595703125
[ 51/100] L= 0.21338 | grad norm= 1379.9898681640625
[ 56/100] L= 0.12936 | grad norm= 1379.418212890625
[ 61/100] L= 0.12202 | grad norm= 1377.6400146484375
[ 66/100] L= 0.04542 | grad norm= 1378.192626953125
[ 71/100] L= 0.03239 | grad norm= 1378.7442626953125
[ 76/100] L= 0.04879 | grad norm= 1378.1683349609375
[ 81/100] L= 0.01227 | grad norm= 1378.6025390625
[ 86/100] L= 0.00622 | grad norm= 1378.5596923828125
[ 91/100] L= 0.00669 | grad norm= 1378.5628662109375
[ 96/100] L= 0.03036 | grad norm= 1378.729736328125
[100/100] L= 0.00235 | grad norm= 1378.5322265625

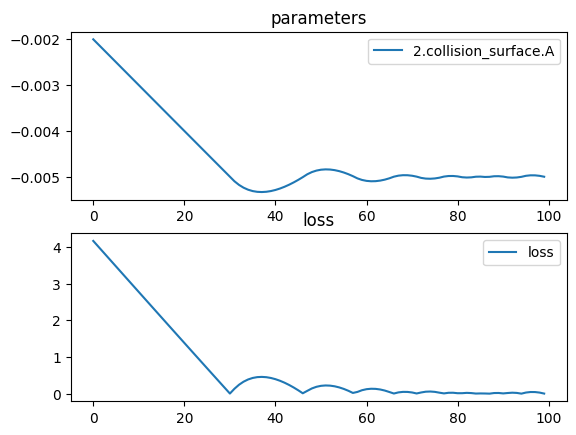

png

python
tlm.show(optics, dim=2)
tlm.show(optics, dim=3)
