Reflecting Telescope

A reflecting telescope, in its basic form, is a very simple design. Two surfaces both reflect light to focus it at a single point.

Newton reflecting Telescope

Image from Wikipedia

For this example, our telescope will be made of two convace mirrors. To spice things up, we'll say that the primary mirror is parabolic, and the secondary is spherical. Of course this can easily be changed, so feel free to download this notebook and play with it. In this example, we will keep the position of the two mirrors constant, and try to optimize the two mirrors curvatures jointly.

python

import torchlensmaker as tlm

primary = tlm.Parabola(35., A=tlm.parameter(-0.0001))
secondary = tlm.Sphere(35., R=tlm.parameter(450.0))

optics = tlm.Sequential(
    tlm.Gap(-100),
    tlm.PointSourceAtInfinity(beam_diameter=30),
    tlm.Gap(100),

    tlm.ReflectiveSurface(primary),
    tlm.Gap(-80),

    tlm.ReflectiveSurface(secondary),

    tlm.Gap(100),
    tlm.FocalPoint(),
)

tlm.show2d(optics)
tlm.show3d(optics)

Now, as you can see light isn't being focused at all. We have wrapped both surfaces arguments in tlm.parameter(). Internally, this creates a nn.Parameter() so that PyTorch can optimize them. Let's run a standard Adam optimizer for 100 iterations, with 10 rays samples.

python

import torch.optim as optim

tlm.optimize(
    optics,
    optimizer = optim.Adam(optics.parameters(), lr=3e-4),
    sampling = {"base": 10},
    dim = 2,
    num_iter = 100
).plot()

[  1/100] L=  4.143 | grad norm= 5082.363918620529
[  6/100] L=  2.142 | grad norm= 4340.7287936145685
[ 11/100] L=  0.756 | grad norm= 4644.1259709838105
[ 16/100] L=  0.759 | grad norm= 4603.423573570586
[ 21/100] L=  1.231 | grad norm= 4325.102890947149
[ 26/100] L=  0.651 | grad norm= 4534.0182712760015
[ 31/100] L=  0.422 | grad norm= 4376.47656474204
[ 36/100] L=  0.136 | grad norm= 4394.467760993692
[ 41/100] L=  0.376 | grad norm= 4442.9357634169955
[ 46/100] L=  0.229 | grad norm= 4411.379267391225
[ 51/100] L=  0.499 | grad norm= 4307.708008600472
[ 56/100] L=  0.664 | grad norm= 4447.6069665453715
[ 61/100] L=  0.342 | grad norm= 4308.933241431921
[ 66/100] L=  0.037 | grad norm= 4349.463429603535
[ 71/100] L=  0.197 | grad norm= 4363.575517844985
[ 76/100] L=  0.145 | grad norm= 4351.460623838482
[ 81/100] L=  0.120 | grad norm= 4312.586251795746
[ 86/100] L=  0.246 | grad norm= 4291.967671380488
[ 91/100] L=  0.213 | grad norm= 4292.15663167869
[ 96/100] L=  0.004 | grad norm= 1206.8889840433037
[100/100] L=  0.011 | grad norm= 4312.224145720371

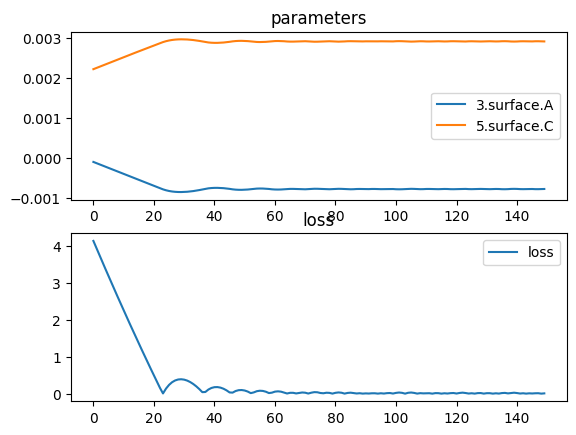

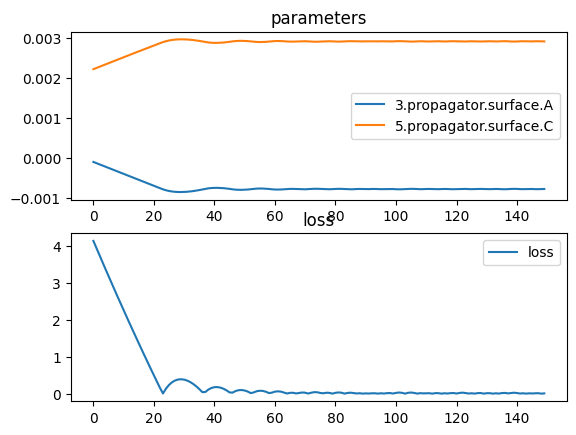

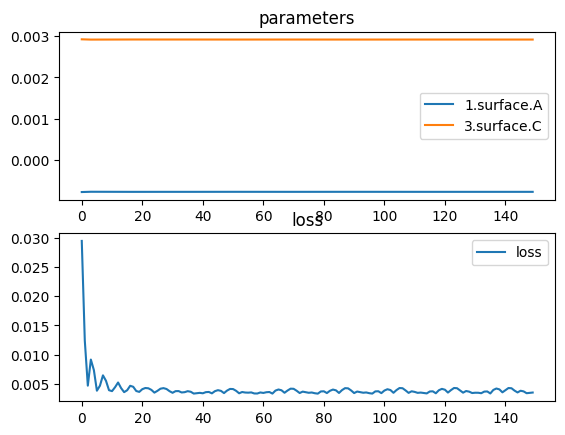

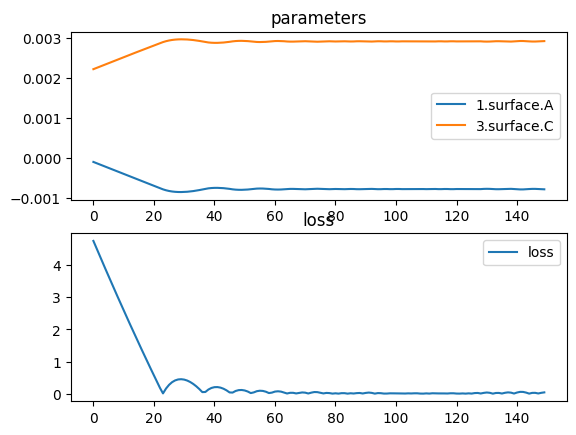

png

python

tlm.show(optics, dim=2)
tlm.show(optics, dim=3)
