Variable Lens Sequence

A configurable system with multiple lenses. We define three types of lenses:

• A plano convex lens
• A symmetric biconvex lens
• A convex plano lens, the same shape as the first lens, just reversed.

The number of lenses of each type are input parameters of the script, and the complete sequence is:

• X plano convex lenses
• Y biconvex convex lenses
• Z convex plano lenses

import torch
import torch.nn as nn
import torch.optim as optim
import torchlensmaker as tlm

import math
import itertools
import numpy as np

### DESIGN ###

# Design parameters
square_size = 30
lens_diameter = math.sqrt(2)*square_size
focal_length = 35.

# Number of each lens type
nplano = 2
nbiconvex = 2
nrplano = 1

# Mechanical sizes
lens_min_thickness = 1.2
lens_spacing = 3.

### MODEL ###

# Parametric surfaces
surface_plano = tlm.Parabola(lens_diameter, tlm.parameter(-0.002))
surface_biconvex = tlm.Parabola(lens_diameter, tlm.parameter(0.002))

# Lenses
lenses_plano = [tlm.PlanoLens(
    surface_plano,
    material="BK7-nd",
    outer_thickness = lens_min_thickness,
    reverse=False,
) for i in range(nplano)]

lenses_biconvex = [tlm.BiLens(
    surface_biconvex,
    material="BK7-nd",
    outer_thickness = lens_min_thickness,
) for i in range(nbiconvex)]

lenses_rplano = [tlm.PlanoLens(
    surface_plano,
    material="BK7-nd",
    outer_thickness = lens_min_thickness,
    reverse=True,
) for i in range(nrplano)]

optics = tlm.Sequential(
    tlm.PointSourceAtInfinity(beam_diameter=0.9*lens_diameter),
    tlm.Gap(10.),

    *itertools.chain.from_iterable([[tlm.Gap(lens_spacing), lens] for lens in lenses_plano]),
    *itertools.chain.from_iterable([[tlm.Gap(lens_spacing), lens] for lens in lenses_biconvex]),
    *itertools.chain.from_iterable([[tlm.Gap(lens_spacing), lens] for lens in lenses_rplano]),

    tlm.Gap(focal_length),
    tlm.FocalPoint(),
)

# print(optics)

print("Lens design")
print("Square size", square_size)
print("Lens diameter", lens_diameter)
print("Configuration", nplano, nbiconvex, nrplano)
print("lens_min_thickness", lens_min_thickness)
print("lens_spacing", lens_spacing)

tlm.show(optics, dim=2)
tlm.show(optics, dim=3)

Lens design
Square size 30
Lens diameter 42.42640687119285
Configuration 2 2 1
lens_min_thickness 1.2
lens_spacing 3.0

def regu_equalparam(_):
    a1 = surface_plano.sag_function.A
    a2 = surface_biconvex.sag_function.A
    return 500*torch.pow((500*a1)**2 - (500*a2)**2, 2)
    #params = torch.cat([param.view(-1) for param in optics.parameters()])
    #return torch.pow(torch.diff(1000*torch.abs(params)).sum(), 2)

def regu_equalthickness(_):
    t0 = lenses_plano[0].inner_thickness()
    t1 = lenses_biconvex[0].inner_thickness()
    return 100*torch.pow(t0 - t1, 2)

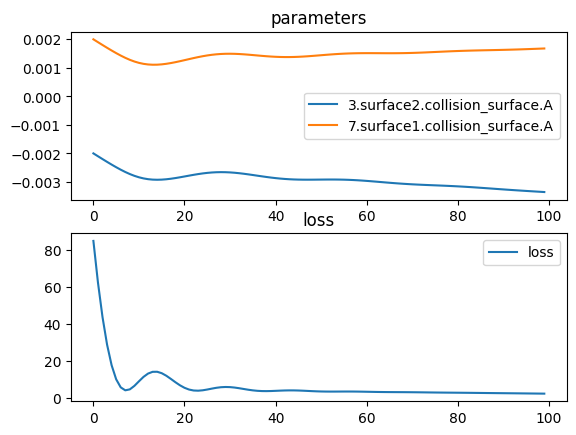

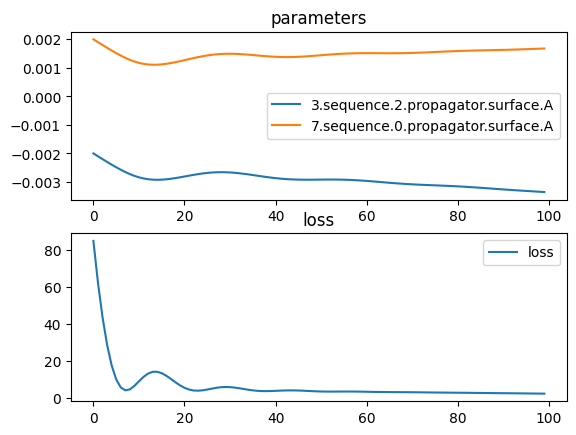

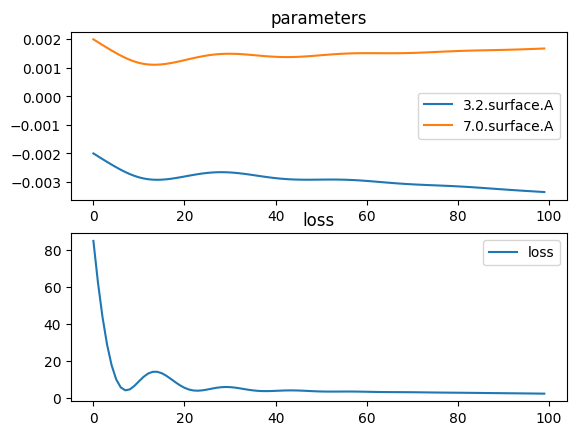

tlm.optimize(
    optics,
    optimizer = optim.Adam(optics.parameters(), lr=1e-4),
    sampling = {"base": 10},
    dim = 2,
    num_iter = 100,
    regularization = regu_equalthickness
).plot()

def print_lens(lens_name, lens):
    # TODO thickness at a specific radial distance
    print(lens_name)
    inner = lens.inner_thickness().item()
    outer = lens.outer_thickness().item()
    print(f"    inner: {inner:.3f} outer: {outer:.3f}")

    a1 = lens.surface1.surface.parameters()
    a2 = lens.surface2.surface.parameters()
    print("    surface1", [p.tolist() for p in a1.values()])
    print("    surface2", [p.tolist() for p in a2.values()])

print_lens("Plano-convex", lenses_plano[0])
print_lens("Bi-convex", lenses_biconvex[0])
print_lens("Reverse plano-convex", lenses_rplano[0])

[  1/100] L= 84.72069 | grad norm= 180027.30862278357
[  6/100] L= 10.01247 | grad norm= 48586.85755590343
[ 11/100] L= 8.91487 | grad norm= 45467.74239605879
[ 16/100] L= 13.30247 | grad norm= 62370.50386953764
[ 21/100] L= 5.41850 | grad norm= 25824.077977854635
[ 26/100] L= 4.48008 | grad norm= 15842.663128900638
[ 31/100] L= 5.78234 | grad norm= 28089.62404966173
[ 36/100] L= 4.02969 | grad norm= 11638.055971416858
[ 41/100] L= 3.77202 | grad norm= 9785.112707664568
[ 46/100] L= 3.94697 | grad norm= 14470.964187204283
[ 51/100] L= 3.42942 | grad norm= 4729.656536109289
[ 56/100] L= 3.39896 | grad norm= 5939.238320172063
[ 61/100] L= 3.27782 | grad norm= 5355.62028333003
[ 66/100] L= 3.09550 | grad norm= 2785.6950266503795
[ 71/100] L= 3.01818 | grad norm= 5088.090741496315
[ 76/100] L= 2.87060 | grad norm= 2992.8819671020133
[ 81/100] L= 2.75578 | grad norm= 2519.293863233731
[ 86/100] L= 2.62924 | grad norm= 2378.915392082205
[ 91/100] L= 2.49802 | grad norm= 2648.057012700259
[ 96/100] L= 2.36887 | grad norm= 2893.292291950819
[100/100] L= 2.25898 | grad norm= 2461.6446989914994

Plano-convex
    inner: 2.714 outer: 1.200
    surface1 []
    surface2 [-0.003365161886999925]
Bi-convex
    inner: 2.716 outer: 1.200
    surface1 [0.0016848444819891435]
    surface2 [0.0016848444819891435]
Reverse plano-convex
    inner: 2.714 outer: 1.200
    surface1 [-0.003365161886999925]
    surface2 []

tlm.show2d(optics)
tlm.show3d(optics)

from IPython.display import display

tlm.show_part(tlm.export.lens_to_part(lenses_plano[0]))
tlm.show_part(tlm.export.lens_to_part(lenses_biconvex[0]))

part display not supported in vitepress

part display not supported in vitepress
